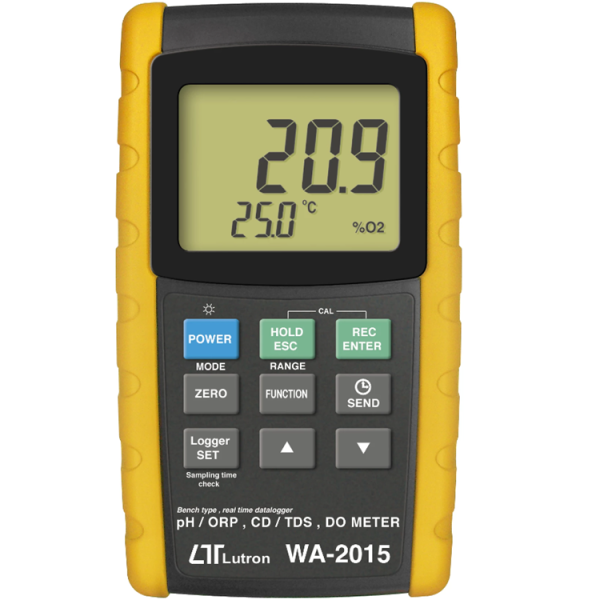

Multi-Parameter (Water Quality Meter) - WA-2015

The WA-2015 Multi-Parameter Water Quality Meter offers accurate and reliable measurements for various parameters, making it an essential tool for applications in water conditioning, aquariums, food processing, and more.

Exceptional Features of the WA-2015:

1. Multi-Parameter Measurement: Measures pH, ORP, conductivity (CD), TDS, and dissolved oxygen (DO), providing comprehensive testing capabilities.
2. Real-Time Data Logger: Features a real-time data logger with a built-in clock and calendar, allowing for real-time data recording with adjustable sampling times from 1 second to 8 hours, 59 minutes, and 59 seconds.
3. Automatic and Manual Temperature Compensation: Offers both automatic and manual temperature compensation options, ensuring accurate readings under varying conditions.
4. Auto Calibration: Supports auto calibration for pH 4, pH 7, and pH 10, ensuring precise measurements.
5. RS232/USB Interface: Equipped with RS232 and USB interfaces for easy data transfer to a computer, facilitating further analysis and record-keeping.

Specifications
Display	: LCD size	: 82 mm x 61 mm.
	: With green color backlight.
Measurement	: pH/ORP
	: Conductivity/TDS (Total Dissolved Solids)
	: Dissolved Oxygen
Resolution	: /
Accuracy	: /
Temperature Compensation	: /
Probe Structure	: /
Data Hold	: Freeze the display reading.
Memory Recall	: Maximum & Minimum value.
Sampling Time	: Approx. 1 second.
Circuit	: Custom one-chip of microprocessor LSI circuit.
Power off	: Auto shut off saves battery life or manual off by push Button.
	: Can default auto power or manual power off.
	: When default auto power function, power will off automatically after 10 MIN, if no Button be pressed.
Operating Temp.	: 0 to 50°C. – Main instrument.
Operating Humidity	: Less than 80% R.H.
Power Supply	: DC 1.5 V battery (UM3) x 8 PCs, (Heavy duty type).
	: DC 9V adapter input. @ AC/DC power adapter is optional.
Power Consumption	: Operation (LCD backlight ON): Approx. DC 32 mA
	: Operation (LCD backlight OFF): Approx. DC 8 mA
	: Power OFF (only internal clock running): Approx. DC 1.8 uA.
Dimension	: 225 X 125 X 64 mm (8.86 X 4.92 X 2.52 inch)
Weight	: 1049 g/2.3 LB.
Datalogger Sampling Time Setting range	: /
Memory Card	: /
Advanced setting	: /
Data Output	: RS 232 PC serial interface.
Standard Accessories	: /
Optional Accessories	: pH electrode	: PE-03, PE-11, PE-01, PE06HD PE-04HD, PE-05T, PE-03K7 PE-02, PE-08, PE-21
	: ATC (Automatic Temperature Probe)	: TP-07
	: pH 7 buffer solution	: pH-07
	: pH 4 buffer solution	: pH-04
	: pH electrode hoder	: EH-20
	: AC to DC 9V adapter.
	: RS232 cable, UPCB-02.
	: USB cable, USB-01
	: Data Acquisition software, SW-U801-WIN.
	: Data Logger software, SW-DL2005.

Technical Specifications
Measurement Ranges	: pH	: 0 to 14.00 pH
	: ORP	: ± 1999 mV
	: Conductivity	: 0 to 200 µS, 0.2 to 2.000 mS, 2 to 20.00 mS, 20 to 200.0 mS
	: TDS	: 0 to 132 PPM, 132 to 1,320 PPM, 1,320 to 13,200 PPM, 13,200 to 132,000 PPM
	: Dissolved Oxygen	: 0 to 20.0 mg/L
	: Temperature	: 0 to 60℃
Resolutions	: pH	: 0.01 pH
	: ORP	: 1 mV
	: Conductivity	: 0.1 µS, 0.001 mS, 0.01 mS, 0.1 mS
	: TDS	: 0.1 PPM, 1 PPM, 10 PPM, 100 PPM
	: Dissolved Oxygen	: 0.1 mg/L
	: Temperature	: 0.1℃ / 0.1℉
Accuracy	: pH	: ±0.02 pH + 2d
	: ORP	: ±0.5% + 2d
	: Conductivity	: ±2% F.S. + 1d
	: TDS	: ±2% F.S. + 1d
	: Dissolved Oxygen	: ±0.4 mg/L
	: Temperature	: ±0.8℃ / ±1.5℉
Data Logger	: Auto Data Logger	: 1 second to 8 hours, 59 minutes, 59 seconds
Data Logger	: Manual Data Logger	: Set sampling time to 0 second
Memory Capacity	: 16,000 data logger no.
Display	: Large LCD with green backlight, size 82 mm x 61 mm
Power Supply	: DC 1.5V battery (UM3, AA) x 8 PCs or DC 9V adapter
Dimensions	: 225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inches)
Weight	: 1049 g (2.3 lb)

Included Accessories:

Instruction manual
pH electrode (PE-03)
Conductivity probe (CDPB-03)
Dissolved oxygen probe (OXPB-11)
pH 7 buffer solution (PH-07)
pH 4 buffer solution (PH-04)
RS232 cable (UPCB-02)
USB cable (USB-01)
Data acquisition software (SW-U801-WIN)
Data logger software (SW-DL2005)
Carrying case (CA-08)

Optional Accessories:

ORP electrode (ORP-14)
ATC temperature probe (TP-07)
Spare probe head with diaphragm set (OXHD-04)
Probe-filling electrolyte (OXEL-03)
Conductivity standard solution (CD-14)

Versatile Applications:

Ideal for use in aquariums, beverage industry, fish hatcheries, food processing, photography, laboratories, paper industry, plating industry, quality control, schools, colleges, and water conditioning.

Invest in the WA-2015 Multi-Parameter Water Quality Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
