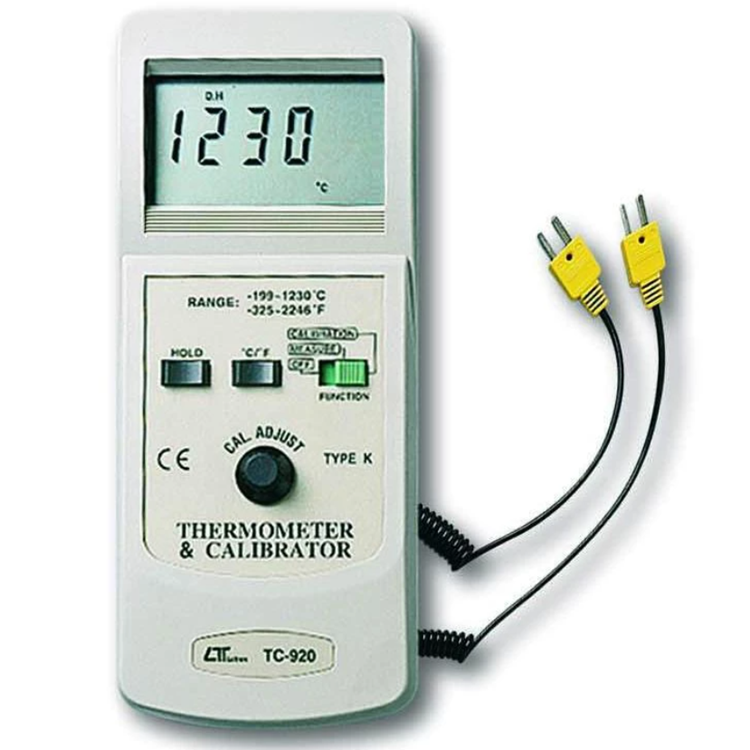

Thermometer Calibrator - TC-920 - Bismillah Scientific Co.

The TC-920 Thermometer Calibrator provides accurate and reliable calibration for type K thermometers, making it an essential tool for industrial applications.

Exceptional Features of the TC-920:

1. 2-in-1 Functionality: Combines a type K thermometer and a type K thermocouple calibrator in one device, providing versatile calibration and measurement capabilities.
2. Wide Temperature Range: Offers a wide measurement range from -199.9 to 1230℃ (-327 to 2246℉), ensuring suitability for various applications.
3. High Accuracy and Precision: Utilizes a microprocessor circuit with built-in temperature linearity compensation for high accuracy and special functions.
4. User-Friendly Interface: Features a large LCD display for easy reading, with selectable ℃/℉ units and data hold function for convenient operation.
5. RS232 PC Interface: Equipped with an RS232 PC serial interface for data output, enabling integration with computers for data analysis and management.

Specifications
Circuit	: Custom one-chip of microprocessor LSI with thermocouple linearity correction circuit.
Display	: 14.8 mm (0.58″) digit size. Super large LCD display with annunciator.
Measurement	: /
Source	: /
Sampling Time of Display	: Approx. 1 second.
Advanced setting	: /
Operating Temperature and Humidity	: 0 °C to 50 °C (32°F to 122°F). Less than 80% RH.
Power Supply	: 006P DC 9V, MN1604/PP3 battery or equivalent. Heavy duty or Alkaline type.
Power Current	: Approx. DC 9 mA.
Weight	: 280 g/0.62 LB (included battery).
Dimension	: 185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inch).
Accessories Included	: Instruction Manual	: 1 PC.
	Accessories Included	: Dual type k plug cable, DUK-02	: 1 PC.
Optional Accessory	: Temperature probe, TP-01, TP-02A, TP-03, TP-04.
	: Carrying case, CA-03, CA-04.
	: Software, SW-U801-WIN.
	: RS232 cable, UPCB-01.
	: USB cable, USB-01.

Technical Specifications
Display	: Type	: Super large LCD display
	: Digit Size	: 14.8 mm (0.58 inch)
	: Annunciators	: Various function indicators
Functionality	: Type K thermometer
	: Type K thermocouple calibrator
Measurement Range
Calibrator Range	: 199.9 to -100.1℃	Resolution: 0.1℃, Accuracy: ±1% + 1℃
	: 100.0 to 999.9℃	Resolution: 0.1℃, Accuracy: ±0.5% + 1℃
	: 1000 to 1230℃	Resolution: 1℃
	: 327 to -200℉	Resolution: 1℉, Accuracy: ±1% + 2℉
	: 199.9 to -148.1℉	Resolution: 0.1℉
	: 148.0 to 999.9℉	Resolution: 0.1℉, Accuracy: ±0.5% + 2℉
	: 1000 to 2246℉	Resolution: 1℉
Thermometer Range	: Same as above for calibrator range
Input Impedance	: 10 Mega ohms
Sampling Time	: Approx. 1 second
Data Output	: RS232 PC serial computer interface
Power Supply	: 006P DC 9V battery (MN1604/PP3 or equivalent, heavy duty or Alkaline type)
Power Consumption	: Approx. DC 9 mA
Operating Environment	: Temperature	: 0 to 50℃ (32 to 122℉)
	: Humidity	: Less than 80% RH
Dimensions	: 185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inches)
Weight	: 280 g (0.62 lb, including battery)

Accessories Included:

Instruction Manual: 1 PC
Dual Type K Plug Cable (DUK-02): 1 PC

Optional Accessories:

Temperature Probes (TP-01, TP-02A, TP-03, TP-04)
Carrying Cases (CA-03, CA-04)
Software (SW-U801-WIN)
RS232 Cable (UPCB-01)
USB Cable (USB-01)

Advanced Features:

Microprocessor Circuit: Ensures high accuracy and special functions.
Temperature Linearity Compensation: Provides high precision.
Select Function: Front button selection for ℃/℉ units.
Super Large LCD Display: Easy to read measurements.

Invest in the TC-920 Thermometer Calibrator for precise and reliable temperature calibration, ensuring high performance and versatility in various industrial applications.
