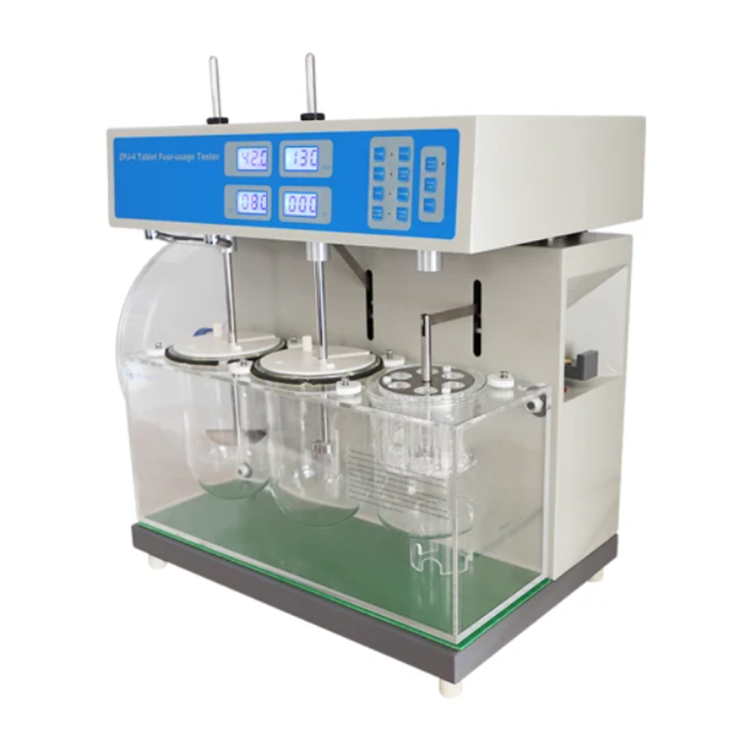

DESCRIPTION
It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.
Applicable standards:
National standard (Chinese codex) / 2015
Industry standard (Dissolution tester)
Industry standard (Disintegration tester)
Industry standard (Tablet friability tester)
Industry standard (Tablet hardness tester)
FEATURES
- Intellectualized, auto-control, auto-test, auto-diagnose, auto-alarm.
- The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.
- Temperature is high accurately auto-controlled.
- Auto stop at timing point.
- Parameters can be preset at any time, the preset and real data are displayed alternately in time.
- It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over smoothly and flexibly.
- Two disintegrations run synchronously. Auto stop at timing point.
- High accuracy is achieved in testing rotary speed and counting friability.
- The hardness has high accuracy press sensor and hardness data is displayed in Newton.
- It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
- Auto-display, auto-memorize, auto-reset, auto-retest.
Specifications |
||
| Temperature range | : (20~45)℃±0.3℃ | |
| Speed range | : (20~200)rpm±2rpm | |
| Automatic time range | : (1~900)min±0.5min | |
| Stations of dissolution | : 3 | |
| Paddle radial run-out | : ±0.5mm | |
| Basket radial run-out | : ±1.0mm | |
| Basket assemblies | : 2 | |
| Nacelle back and forth frequency | : (30~32 )/ min | |
| Nacelle back and forth range | : (55±2)mm | |
| Drum | : 1 | |
| Drum’s size | : radius | : Φ286mm |
| depth | : 39mm | |
| Hardness range | : (2~200)N | |
| Probe procession range | : (3~20)mm | |
| Power | : 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W | |
| Dimension | : 520×380×480mm | |
