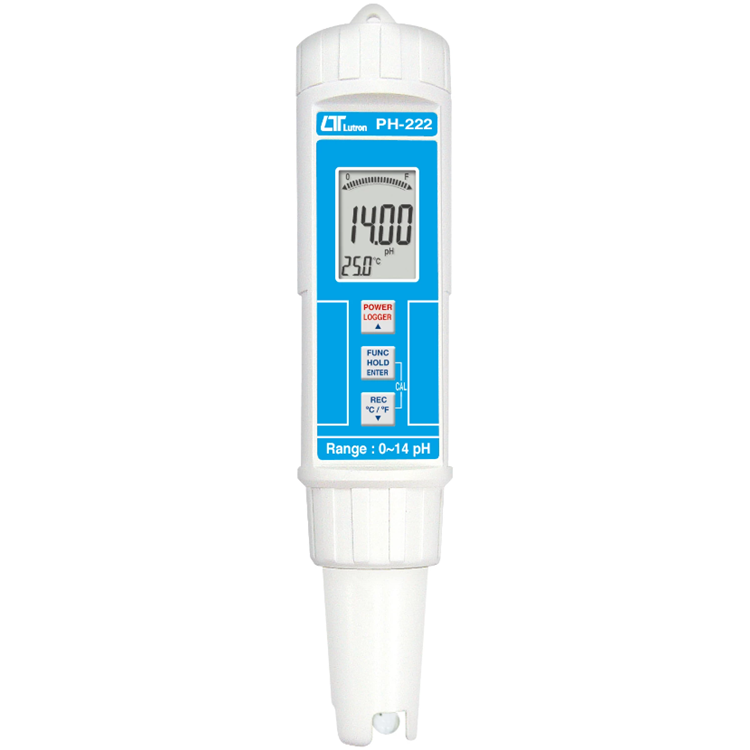

Pen pH Meter - PH-222 - Bismillah Scientific Co.

The PH-222 Pen pH Meter offers accurate and reliable pH measurements with a pen-type design, making it an essential tool for various applications in aquariums, laboratories, food processing, and more.

Exceptional Features of the PH-222

Pen-Type Design: Compact and lightweight, the pen-type design makes it easy to carry and use for general-purpose applications. The pH electrode is included.
Automatic Temperature Compensation: Built-in temperature sensor provides automatic temperature compensation (ATC), ensuring precise pH readings.
Auto Calibration: Supports auto calibration for pH 4, pH 7, and pH 10, ensuring precise measurements.
Dual Display with Bar Graph Indicator: Features an LCD with dual display and bar graph indicator, showing both pH and temperature simultaneously for easy readout.
Data Hold and Memory Recall: Includes a data hold function to freeze the desired value and a memory recall function for maximum and minimum values. Also supports 100-point data logging with recall.

Specifications
Features	: /
Display	: LCD, Size	: 20 mm x 28 mm. With bar graph indicator.
Measurement	: pH	: 0 to 14 pH.
	: Temp	: 0 to 60 (32 to 140). °C °F
	: —	: —
Range/Resolution	: /
Accuracy	: pH	: ± 0.02 pH, ± 0.2 pH, After calibration, meter without PE-12 electrode.
	: Temp	: ± 0.8 °C/ ± 1.5 °F.
	: —	: —
Input Impedance PH range Temp	: 10^12 ohms.
Compensation	: /
Sampling Time	: Approx. 0.8 second.
Operating Temperature	: 0 to 60 °C (32 to 140 °F).
Operating Humidity	: Less than 80% RH.
Calibration VR	: /
Power Supply	: DC 1.5V battery (UM-4/AAA) x 4 PCs.
Power Consumption	: Approx. 4.8 mA.
Dimension	: 186 x 40 x 32 mm (7.3 x 1.6 x 1.3 inch). Meter with pH electrode.
Weight PH electrode	: 131 g/0.36 LB (included electrode).
PH range Temp. Compensation	: ATC (Automatic temperature compensation), build thermister Temp. sensor.
PH electrode (Optional)	: PE-12, Included.
Resolution	: pH	: 0.01 pH.
	: Temp	: 0.1 °C/ 0.1 °F.
	: —	: —
Data Hold	: Freeze the display reading.
Memory Recall	: Maximum & Minimum value.
pH Calibration	: pH 7, pH 4 or pH 10, 3 points calibration ensure the best linearity and accuracy.
	: Other calibration point that near the pH 7, pH 4, and pH 10 are available.
	: —
Data Logger	: Max. can save 100 point data with recall.
	: Manual, push the data logger button once will save data one time.
	: —
Power off	: Auto power shut off to save battery life.
Optional model	: /
Standard Accessories	: Instruction Manual	: 1 PC
	: pH electrode, PE-12	: 1 PC
	: pH 7.00 buffer solution, PH-07A	: 1 PC
	: pH 4.00 buffer solution, PH-04A	: 1 PC
	: PE-12, PH-07A, PH-04A are the consumer accessory.
Optional Accessories	: pH electrode, PE-12
	: pH 7.00 buffer solution, PH-07A
	: pH 4.00 buffer solution, PH-04A
	: Hard carrying case, Model	: CA-06
	: Soft carrying case, Model	: CA-52A

Technical Specifications
Measurement Range	: pH	: 0 to 14 pH
	: Temperature	: 0 to 60℃ (32 to 140℉)
	: —	: —
Resolution	: pH	: 0.01 pH
	: Temperature	: 0.1℃ / 0.1℉
	: —	: —
Accuracy	: pH	: ± 0.02 pH (after calibration, without electrode)
		: ± 0.2 pH (after calibration, with PE-12 electrode)
		: —
	: Temperature	: ± 0.8℃ / ± 1.5℉
	: —	: —
Display	: LCD, size 20 mm x 28 mm, with bar graph indicator
Input Impedance	: 10^12 ohms
Temperature Compensation	: Automatic temperature compensation (ATC) with built-in thermistor
Calibration	: Auto calibration for pH 7, pH 4, or pH 10
Power Supply	: 1.5V batteries (UM-4/AAA) x 4
Power Consumption	: Approximately 4.8 mA
Dimensions	: 186 x 40 x 32 mm (7.3 x 1.6 x 1.3 inches)
Weight	: 131 g (0.36 lb) including electrode
Included Accessories	: Instruction manual
	: pH electrode (PE-12)
	: pH 7.00 buffer solution (PH-07A)
	: pH 4.00 buffer solution (PH-04A)

Optional Accessories:

pH Electrode: PE-12
Buffer Solutions:
PH-07A: pH 7.00 buffer solution
PH-04A: pH 4.00 buffer solution

Carrying Cases:
Hard carrying case (CA-06)
Soft carrying case (CA-52A)

Versatile Applications:

Ideal for use in aquariums, beverage industry, fish hatcheries, food processing, photography, laboratories, quality control, schools, colleges, swimming pools, and water conditioning.

Invest in the PH-222 Pen pH Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
