Printer of Melting Point Meter

High speed, LCD control POS printing

Lightweight, palm-sized design

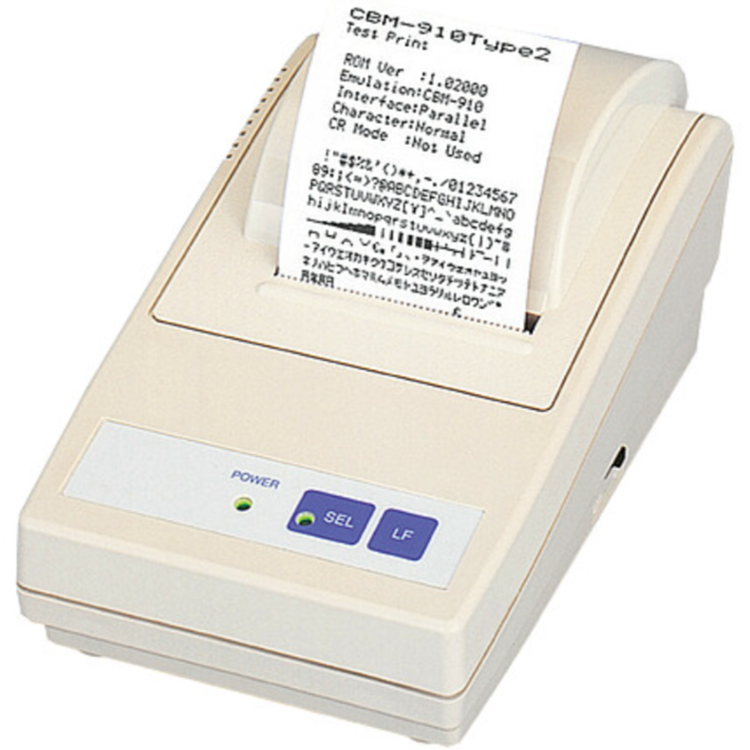

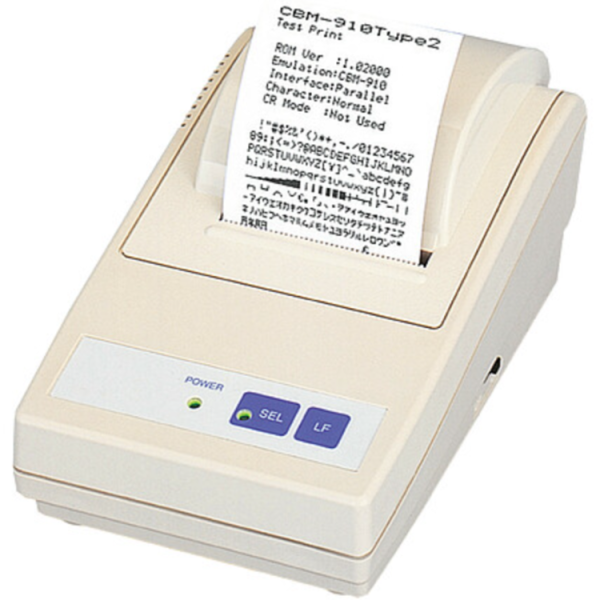

The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.

Palm size
Optional wall mount
Paper-near-end sensor

Specifications
Printing Technology	: Serial dot impact
Print Speed (maximum)	: 2.5 lines/sec
Media Width (min to max)	: 57.5 mm (±0.5 mm)
Media Sensor	: Paper end
Number of columns	: Up to 24 (1.62 x 2.4 mm)
Character table / Code page	: Katakana, WPC1252, 437, 852, 857, 858, 860, 863, 864, 865, 866
Line spacing	: Character	: 3.52 mm
	: Graphic	: 2.4 mm
Optional interfaces	: Serial (RS-232C compliant), Parallel (IEEE 1284 compliant)
Input buffer	: 2K bytes
Drivers and software	: Free-of-charge from website, including support for various platforms
Emulations (Languages)	: ESC/POS™
Power supply	: DC/V
Reliability	: 1.5 Million lines
Operation environment	: +5 to +40°C, 35% – 90% RH, non condensing
Storage environment	: -20 to +60°C (10% to 90% RH non condensing)
EMC and safety standards	: CE, TUV, UL, C-UL, FCC class A, VCCI
