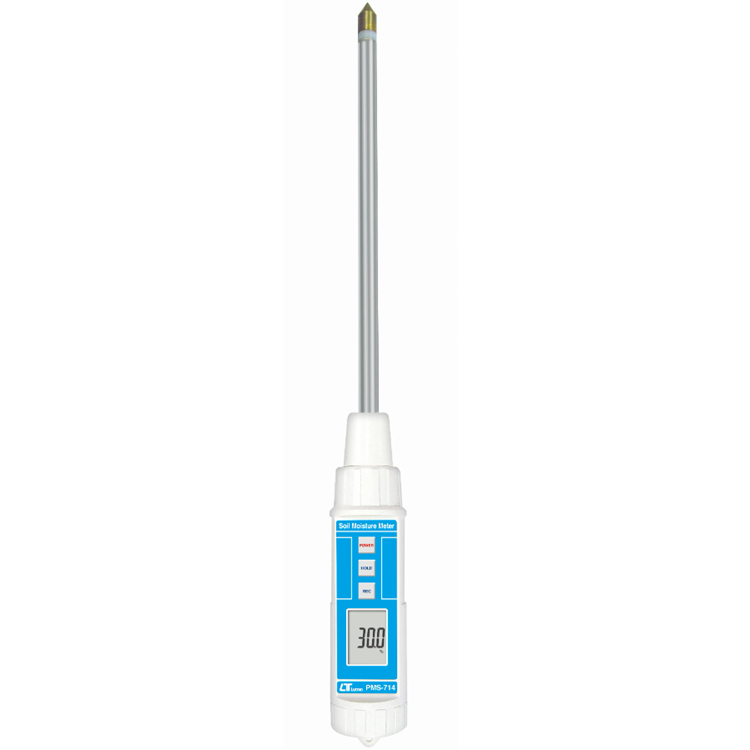

Soil Moisture Meter - PMS-714 - Bismillah Scientific Co.

The PMS-714 Soil Moisture Meter offers accurate and reliable measurements with a durable design, making it an essential tool for various applications in agriculture, gardening, and environmental science.

Exceptional Features of the PMS-714

Designed for Soil: Specifically designed to check the moisture level of soil or other similar materials, ensuring accurate readings tailored for these applications.
Wide Measurement Range: Measures from 0% to 50% moisture content of soil samples with 0.1% resolution, providing detailed and precise information.
All-in-One Digital Design: Easy to operate with all necessary functions integrated into a single device.
Microprocessor Circuit: Ensures high accuracy and provides special functions and features such as data hold to freeze the desired value on display and a low battery indicator.
Durable and Portable: Constructed with durable, long-lasting components and enclosed in a strong, compact ABS-plastic housing, making it easy to carry and operate in various environments.

Specifications
Applications	: Designed to check the moisture level of soil or other similar material.
Principal	: Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of “%” Moisture content “of soil sample.
Default Memory for the species	: /
Circuit	: Custom one-chip of microprocessor LSI circuit.
Display	: LCD, Size	: 28 mm x 19 mm.
Measurement	: 0 % to 50 % moisture content on soil.
Probe	: 2 pins moisture electrode.
Temperature Compensation	: /
Calibration	: /
Data Hold	: Freeze the display reading.
Memory Recall	: /
Power off	: /
Sampling Time	: Approx. 0.8 second.
Data Output	: /
Operating Temperature	: 0 to 50°C.
Operating Humidity	: Less than 80% R.H.
Power Supply	: DC 1.5 V battery (UM4/AAA) x 4 PCs
Power Current	: Approx. DC 12 mA
Weight	: 267 g/ 0.58 LB. Battery is included.
Dimension (Meter body)	: 172 x 40 x 40 mm (6.8″ x 1.6″ x 1.6″).
Dimension (Probe body)	: 220 mm x Dia. 10 mm (8.7″ x Dia. 0.4″).
Dimension {Total length (meter + probe)}	: 392 mm (15.4″).
Moisture	: /
Temp	: /
Material/Range	: /
Resolution	: 0.1 %.
Accuracy	: ± (5 % F.S.+ 5 d), @ 23± 5 , F.S.	: full scale. °C
Accessories Included	: Instruction manual	: 1 PC.
Optional Accessory	: Hard carrying case, CA-06.

Technical Specifications
Applications	: Designed to check the moisture level of soil or other similar material.
Measurement Range	: 0% to 50% moisture content of soil
Resolution	: 0.1%
Accuracy	: ± (5% F.S. + 5d) @ 23 ± 5℃, F.S. = Full Scale
Display	: LCD size 28 mm x 19 mm
Measurement Principle	: Uses a 2-pin electrode to measure the conductive ability of the species, then converts to the reading of % “Moisture content” of soil samples
Circuit	: Custom one-chip microprocessor LSI circuit
Data Hold	: Freezes the display reading
Sampling Time	: Approximately 0.8 seconds
Operating Temperature	: 0℃ to 50℃
Operating Humidity	: Less than 80% RH
Power Supply	: DC 1.5V battery (UM4/AAA) x 4 PCs
Power Consumption	: Approximately 12 mA
Dimensions: Meter body	: 172 x 40 x 40 mm (6.8″ x 1.6″ x 1.6″)
Dimensions: Probe body	: 220 mm x Dia. 10 mm (8.7″ x Dia. 0.4″)
Dimensions {Total length (meter + probe)}	: 392 mm (15.4″)
Weight	: 267 g (0.58 lb) including battery

Included Accessories:
Instruction manual

Optional Accessories:
Hard carrying case (CA-06)

Versatile Applications:

Ideal for use in agriculture, gardening, environmental science, and any application requiring precise soil moisture measurement.

Invest in the PMS-714 Soil Moisture Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
