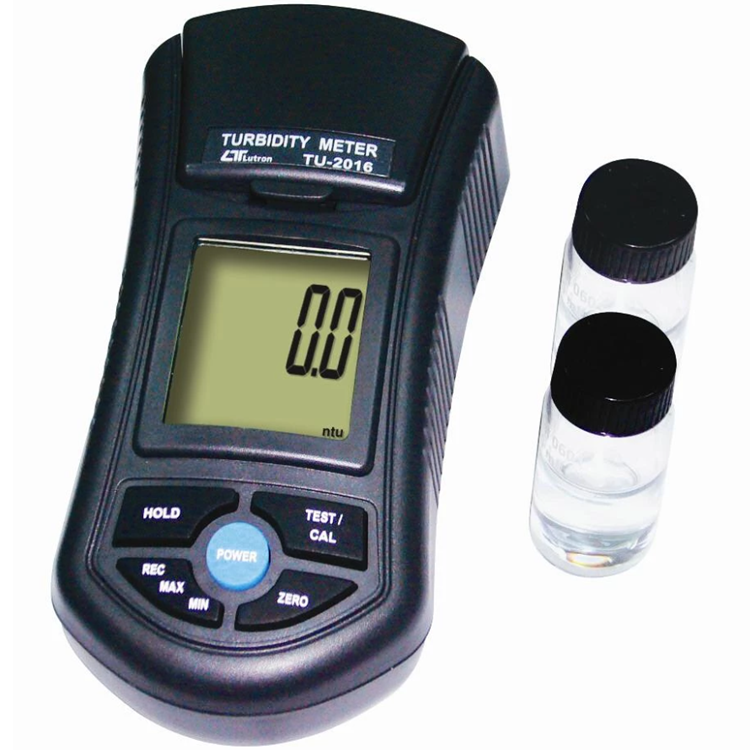

Turbidity Meter - TU-2016 - Bismillah Scientific Co.

The TU-2016 Turbidity Meter offers accurate and reliable measurements with a robust design, making it an essential tool for various applications in water quality testing, food and beverage industry, and more.

Exceptional Features of the TU-2016

ISO 7027 Compliance: Designed to meet ISO 7027 standards, ensuring high-quality and reliable measurements.
Wide Measurement Range: Measures turbidity from 0 to 1,000 NTU with auto-ranging capability, covering a wide spectrum of applications.
High Resolution and Accuracy: Provides high resolution of 0.01 NTU for measurements up to 49.99 NTU and 1 NTU for higher ranges, with an accuracy of ±5% reading or ±0.5 NTU (whichever is greater) for low range and ±5% reading or ±5 NTU for high range.
User-Friendly Operation: Features a jumbo LCD display for easy readout, four operation buttons, two calibration points, and a data hold function for freezing the desired value on display.
Portable and Durable Design: Battery-operated for field and on-site testing convenience, with a heavy-duty compact housing and a hard carrying case for easy transportation and operation.

Specifications
Turbidity Meter	: /
Circuit	: Custom one-chip of microprocessor LSI circuit.
Display	: LCD size	: 41 mm x 34 mm
Range	: 0.00 to 50.00 NTU, 50 to 1,000 NTU
	: NTU	: Nephelometric Turbidity Unit
	: Auto range
Resolution	: 0.00 to 49.99 NTU 0.01 NTU
	: 50 to 1000 NTU 1 NTU
	: —
Accuracy	: 0.00 to 49.99 NTU	: ± 5% reading or ± 0.5 NTU, whichever is greater.
	: 50 to 1000 NTU	: ± 5% reading or ± 5 NTU, whichever is greater.
	: —	: —
Light source	: LED, 850 nm.
Detector	: Photo diode
Standard	: Meet ISO 7027.
Response time	: Less than 10 seconds.
Sample volume needed	: 10 mL.
Data Hold	: Freeze the display reading.
Memory Recall	: Maximum & Minimum value.
Display Sampling Time	: Approx. 1 second.
Power off	: Auto shut off saves battery life or manual off by push button.
Calibration points	: 0 NTU, 100 NTU.
Operating Temperature	: 0 to 50 °C.
	: Less than 85% R.H.
	: —
Power Supply	: DC 1.5 V battery (UM4, AAA) x 6 PCs or DC 9V adapter.
Power Current	: Stand by	: Approx. DC 3.5 mA.
	: Testing	: Approx. DC 36 mA.
	: —	: —
Weight	: 320 g/0.70 LB. Battery is included.
Dimension	: 155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inch)
Accessories Included	: Testing bottle with 0 NTU standard solution	: 1 PC
	: Testing bottle with 100 NTU standard solution	: 1 PC
	: Empty testing bottle	: 2 PCs
	: Clean cloth	: 1 PC
	: Clean solution (Distill water)	: 1 Bottle
	: Hard carrying case, CA-07A	: 1 PC
	: —	: —
Optional Accessories	: Testing bottle with 100 NTU standard solution, TU-100NTU
	: Testing bottle with 0 NTU standard solution, TU-0NTU
	: Empty testing bottle, 0601
	: AC to DC 9V power adapter.
	: Empty testing bottle, 0601

Technical Specifications
Measurement Range	: 0.00 to 50.00 NTU	Resolution	: 0.01 NTU
	: 50 to 1,000 NTU	Resolution	: 1 NTU
	: —	: —	: —
Accuracy	: 0.00 to 49.99 NTU	: ±5% reading or ±0.5 NTU (whichever is greater)
	: 50 to 1,000 NTU	: ±5% reading or ±5 NTU (whichever is greater)
	: —	: —
Light Source	: LED, 850 nm
Detector	: Photodiode
Standards Compliance	: ISO 7027
Response Time	: Less than 10 seconds
Sample Volume Needed	: 10 mL
Display	: LCD size 41 mm x 34 mm
Display Sampling Time	: Approx. 1 second
Power Supply	: DC 1.5V battery (UM4, AAA) x 6 PCs or DC 9V adapter
Power Consumption	: Standby	: Approx. DC 3.5 mA
	: Testing	: Approx. DC 36 mA
	: —	: —
Dimensions	: 155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inches)
Weight	: 320 g (0.70 lb) including battery
Operating Temperature	: 0 to 50℃
Operating Humidity	: Less than 85% RH

Included Accessories:

Testing bottle with 0 NTU standard solution: 1 PC
Testing bottle with 100 NTU standard solution: 1 PC
Empty testing bottles: 2 PCs
Clean cloth: 1 PC
Clean solution (distilled water): 1 bottle
Hard carrying case (CA-07A): 1 PC

Optional Accessories:

Testing bottle with 100 NTU standard solution (TU-100NTU)
Testing bottle with 0 NTU standard solution (TU-0NTU)
Empty testing bottle (0601)
AC to DC 9V power adapter

Versatile Applications:

Ideal for testing municipal water, food and beverage water, or any other aqueous solution where fluid clarity is important.

Invest in the TU-2016 Turbidity Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
